The braking system is crucial for your vehicle's safety and performance. While most people understand the notion of brakes, the brake calliper itself remains a mystery to those who aren't car fanatics. So, let's decode what brake callipers are and their function in a vehicle.
Key Highlights
- A brake calliper is an essential part of a disc braking system, pushing brake pads against the rotor to slow or stop the vehicle.
- When you press the brake pedal, hydraulic fluid pulls the pistons inside the calliper, which forces the brake pads against the rotor, causing friction to stop the wheels.
- There are two types of brake callipers: fixed callipers and floating callipers.
- Brake callipers allow effective braking by exerting the appropriate pressure on the pads and rotor, making them critical to vehicle safety.
- Regular inspections and maintenance are required to guarantee that brake callipers are functioning properly.

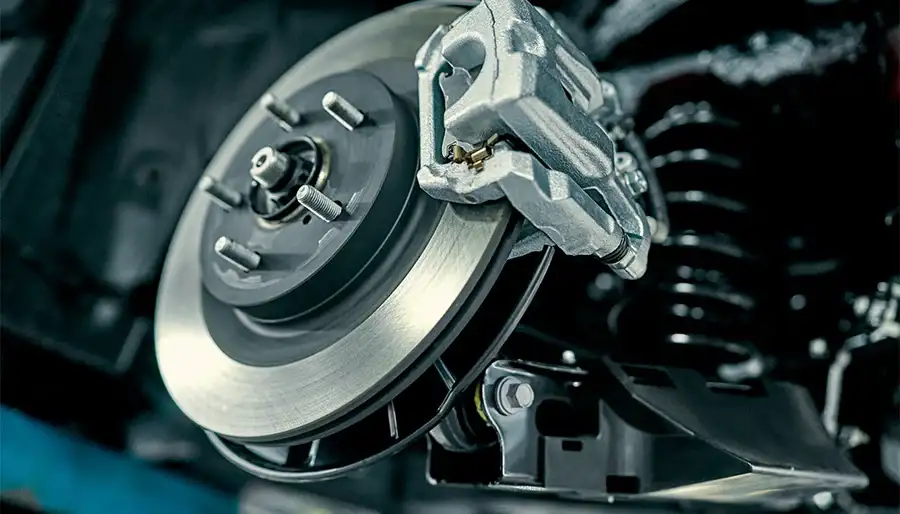

What Is a Brake Calliper?
A vehicle's disc braking system is incomplete without a brake calliper. The calliper's basic function is to press the brake pads against the surface of the brake rotor (or disc) to slow or stop the vehicle. Brake callipers are commonly found in modern cars with disc brakes, which are more widespread than earlier drum brake systems. The calliper holds the brake pads and pistons, which work together to generate the friction required to stop the vehicle when the brakes are engaged.
Types Of Brake Callipers
There are two types of brake callipers:
Fixed Callipers
These callipers have pistons on either side of the rotor that do not move. When you press the brake pedal, the pistons push the brake pads on both sides, squeezing the rotor.
Floating Callipers
It features pistons on one side of the rotor. When the brakes are applied, the calliper moves or "floats" back and forth, causing the pads on either side of the rotor to come together and create friction.
Also Read -
Know why 'Pay-as-you-drive' car insurance can be the right fit
Importance of Brake Callipers
Brake callipers are built to resist harsh circumstances. They must be strong enough to withstand the considerable heat produced by friction, particularly during high-speed braking or when descending steep hills. Any fault in the brake calliper can have a significant impact on your vehicle's braking effectiveness, raising safety concerns.
Also Read -
Know the importance of grace period in motor insurance renewal
How Do Brake Callipers Work?
A brake calliper works by applying hydraulic pressure. Here's the process:
Pressing the Brake Pedal
When you press the brake pedal, fluid flows through the brake lines.
Hydraulic Pressure
The fluid is directed to the brake calliper, where hydraulic pressure causes the pistons within to move.
Piston Movement
The pistons move, pushing the brake pads against the spinning braking rotor.
Friction
The brake pads generate friction by rubbing on the rotor, slowing its rotation and eventually bringing the car to a stop.
Releasing the Brake
When you release the brake pedal, the hydraulic pressure drops, enabling the pistons to release. This causes the brake pads to separate from the rotor, reducing friction and allowing the wheels to rotate freely again.
Common Issues With Brake Callipers
Some of the common issues that you might face with brake callipers are as follows -
Sticking Calliper
When the calliper becomes stuck, the brake pads remain forced on the rotor, resulting in increased wear, overheating, and decreased braking performance.
Leaking Brake Fluid
Because callipers rely on hydraulic pressure, any brake fluid leak can cause a loss of braking force.
Uneven Braking
If one brake calliper fails to function properly, the vehicle may experience uneven braking, pulling to one side.
Also Read -
Know the steps to check your car insurance claim history
Replacement And Maintenance
To maintain your brake system working properly, inspect and service your brake callipers regularly. If you hear peculiar noises while braking, pull to one side, or have a soft brake pedal, your callipers may need to be serviced. Replacing worn-out callipers can greatly enhance braking efficiency and keep you safe on the road.
Understanding Brake Callipers for a Smooth Ride
Brake callipers are relatively small but crucial components that let your vehicle stop safely and effectively. Understanding how they work explains why routine brake service is important. The next time you apply the brakes, you'll have an improved understanding of the complicated system.
While you get your brakes serviced, don't forget to add a
motor insurance policy to your vehicle. It is legally necessary and can come to your assistance in case of financial losses suffered in accidents or damages. Reliance General Insurance offers a range of motor insurance policies that can provide a good scope of coverage at attractive rates. So, secure your ride and drive worry-free.
FAQs
Q1. What are the signs of a malfunctioning brake calliper?
Common indicators of a faulty brake calliper are:
- The vehicle is dragging to one side during braking.
- A mushy, spongy brake pedal.
- Uneven braking pad wear.
- Squeaking or grinding noises while braking.
Q2. Can I drive with a faulty brake calliper?
Driving with a faulty brake calliper is dangerous. It can result in uneven braking, lower stopping power, and excessive wear on other brake components, perhaps leading to brake failure.
Q3. How often do brake callipers need to be changed?
Although brake callipers are designed to last for many years, often the lifetime of the car. Wear and tear can cause them to fail. Frequent brake checkups can help in the early detection of calliper problems.
Q4. Can callipers for brakes be fixed?
Worn-out components like pistons and seals can frequently be replaced to fix brake callipers. However, in severe circumstances, replacing the complete calliper may be required for safe operation.
Q5. Why do brake callipers get so hot?
Callipers become heated due to the high friction generated when pressing the brake pads against the rotor, particularly during severe braking. Excessive heat is a normal part of the braking process, however overheating from jammed callipers can cause ke failure.
